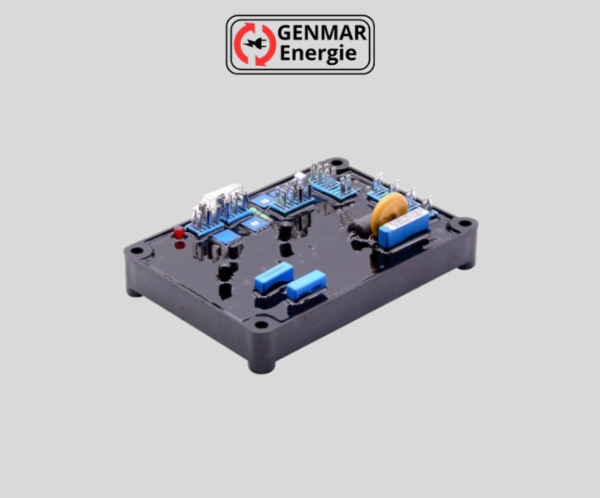

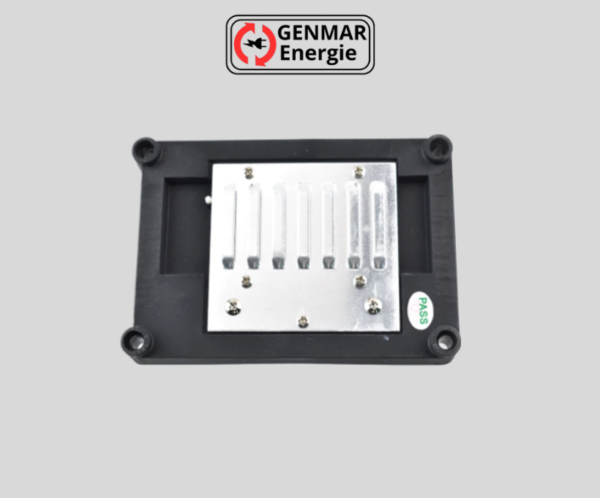

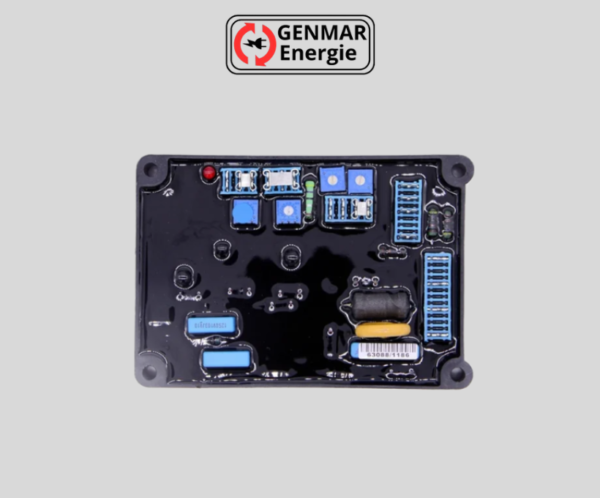

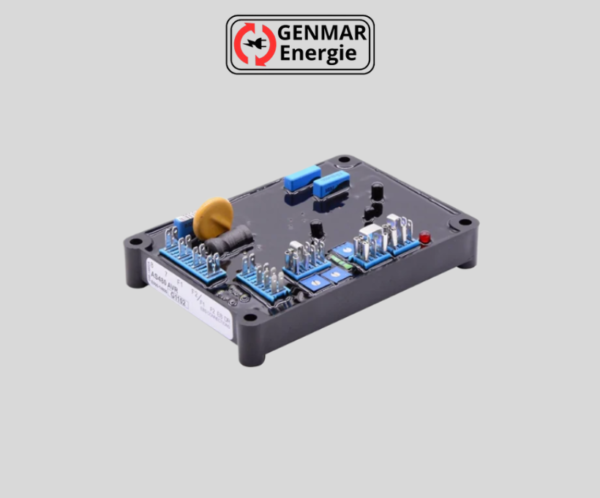

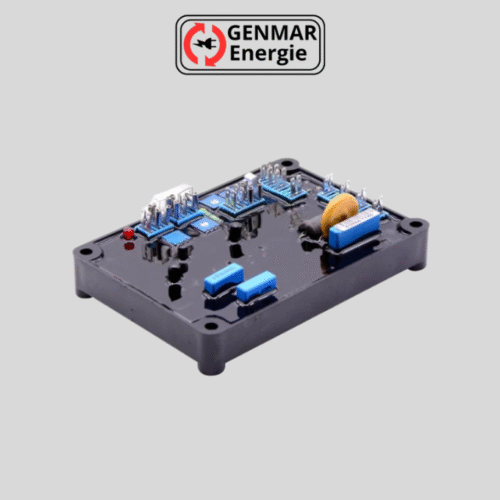

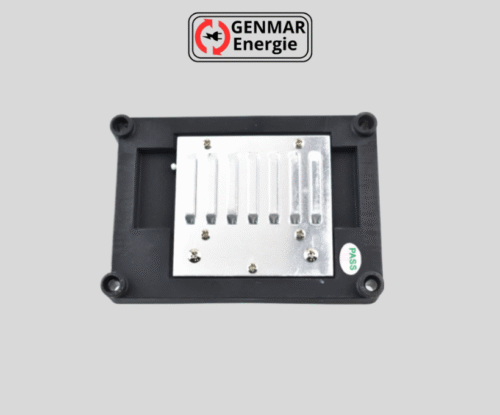

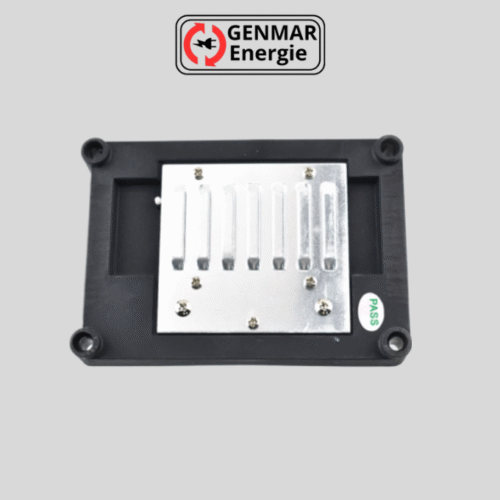

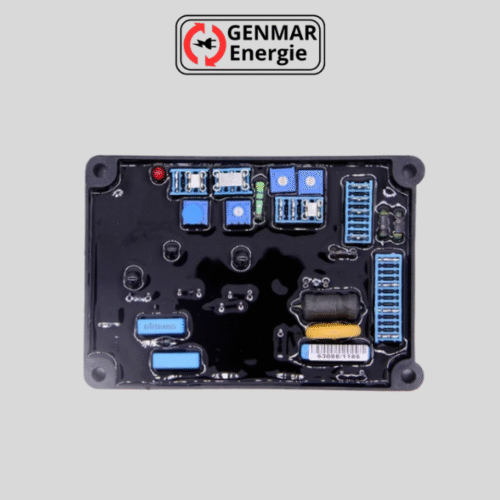

Stamford Generator AS480 AVR Automatic Voltage Regulator Module Diesel Genset Part

Specification

Sensing Input/Power input
120(95132VAC)240(190-264),1 phase,2wire
Magnetic field output
Voltage：Max 90VDC at 207VAC input
Current：Continuous 4A,intermittent 10A
PRESSURE REGULATING ACCURACY
<+/-%RMS with 4% engine governing

Sensing and Power Input:
Voltage : 100- 264 V ac 1 phase
Frequency: 50- 60 Hz nominal
Output:
Voltage: 82 V dc @ 200 V ac power input
Voltage: 45 V dc @ 110 V ac power input
Regulation: +-1%

Features:
Voltage regulation < +/-1%
Soft start voltage ramping
Sensing voltage loss protection
120 or 240 Vac sensing, jumper selectable
Under frequency roll off protection
With under frequency LED indicator
